Single LED Dock Line Projector

Single LED Dock Line Projector

The LED Dock Line projector system provides a highly visible line projection to assist drivers when backing trailers into terminal docks. Without assistance, injuries can occur, docks and trailers can become damaged, and centering trailers can be time-consuming.

LED Dock Lines are visible on all surfaces including water, mud, gravel, and snow. They work best during morning, evening, and night times.

The LED Dock Lines can be seen in a driver’s wing mirrors upon approaching the docking lane and provide a visual indicator that the trailer is centered in the lane.

Applications
  • Center trailer to docks while backing up
  • Separate trailers
  • Eliminate replacing pained lines or tape
  • Reduce damage to trailers and dock
  • Decrease time unloading and loading trailers
Specifications
  • LED projection type: single line
  • LED projection colors: green
  • Mounting height: 15’ – 30’
  • Mounting angle: 20, 30, 45, 60 degrees
  • Power Connection: LED driver w/extension cord & bare leads
  • Optional: 15A Plug
  • MTTF: 75,000 operational hours
  • Material: Anodized Aluminum
  • IEC Safety Classificaiton: 3R(no additional eye wear required)
  • Power Supply: 90-305 Vac / 50-60Hz
  • Operating temperature range: -40°F to 120°F
  • Includes: LED projector and power supply
    (Bracket to mount to facility not included)
  • IP Rating: IP65
  • Environment: Indoor
  • Dimensions: 10” x 11” x 3”
  • Weight: 5.5-6.6 lbs
  • Maintenance free
  • Warranty: 5 years

MSRP:  $768.32

MSRP:  $768.32

P/N:

Additional information

Weight N/A
Dimensions N/A
Color

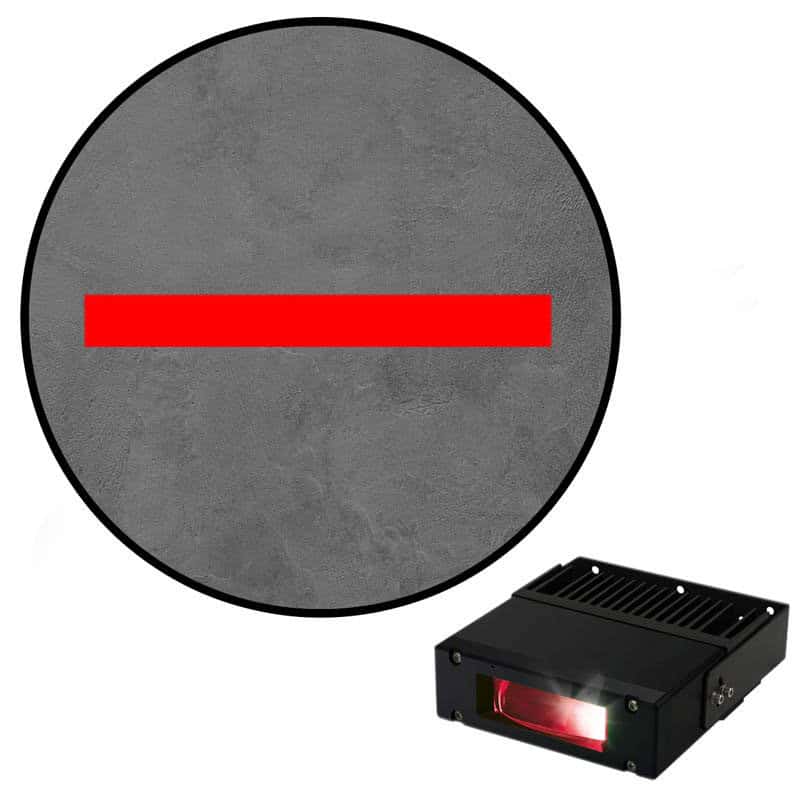

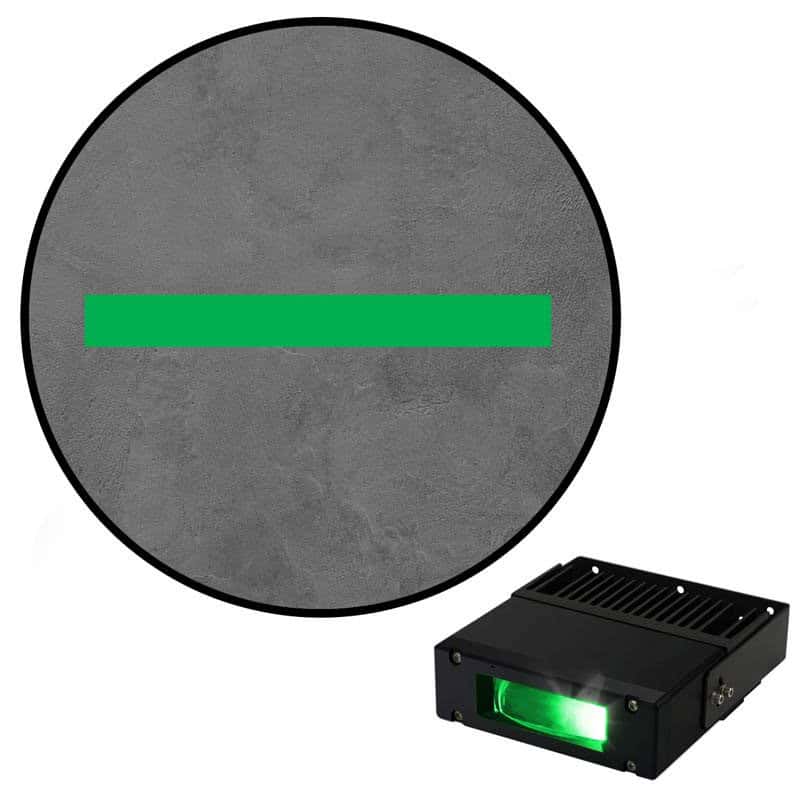

614 Green, 623 Cardinal Red

Applications
  • Center trailer to docks while backing up
  • Separate trailers
  • Eliminate replacing pained lines or tape
  • Reduce damage to trailers and dock
  • Decrease time unloading and loading trailers
Specifications
  • LED projection type: single line
  • LED projection colors: green
  • Mounting height: 15’ – 30’
  • Mounting angle: 20, 30, 45, 60 degrees
  • Power Connection: LED driver w/extension cord & bare leads
  • Optional: 15A Plug
  • MTTF: 75,000 operational hours
  • Material: Anodized Aluminum
  • IEC Safety Classificaiton: 3R(no additional eye wear required)
  • Power Supply: 90-305 Vac / 50-60Hz
  • Operating temperature range: -40°F to 120°F
  • Includes: LED projector and power supply
    (Bracket to mount to facility not included)
  • IP Rating: IP65
  • Environment: Indoor
  • Dimensions: 10” x 11” x 3”
  • Weight: 5.5-6.6 lbs
  • Maintenance free
  • Warranty: 5 years

The LED Dock Line projector system provides a highly visible line projection to assist drivers when backing trailers into terminal docks. Without assistance, injuries can occur, docks and trailers can become damaged, and centering trailers can be time-consuming.

LED Dock Lines are visible on all surfaces including water, mud, gravel, and snow. They work best during morning, evening, and night times.

The LED Dock Lines can be seen in a driver’s wing mirrors upon approaching the docking lane and provide a visual indicator that the trailer is centered in the lane.

Applications
  • Center trailer to docks while backing up
  • Separate trailers
  • Eliminate replacing pained lines or tape
  • Reduce damage to trailers and dock
  • Decrease time unloading and loading trailers
Specifications
  • LED projection type: single line
  • LED projection colors: green
  • Mounting height: 15’ – 30’
  • Mounting angle: 20, 30, 45, 60 degrees
  • Power Connection: LED driver w/extension cord & bare leads
  • Optional: 15A Plug
  • MTTF: 75,000 operational hours
  • Material: Anodized Aluminum
  • IEC Safety Classificaiton: 3R(no additional eye wear required)
  • Power Supply: 90-305 Vac / 50-60Hz
  • Operating temperature range: -40°F to 120°F
  • Includes: LED projector and power supply
    (Bracket to mount to facility not included)
  • IP Rating: IP65
  • Environment: Indoor
  • Dimensions: 10” x 11” x 3”
  • Weight: 5.5-6.6 lbs
  • Maintenance free
  • Warranty: 5 years

Additional information

Weight N/A
Dimensions N/A
Color

614 Green, 623 Cardinal Red
